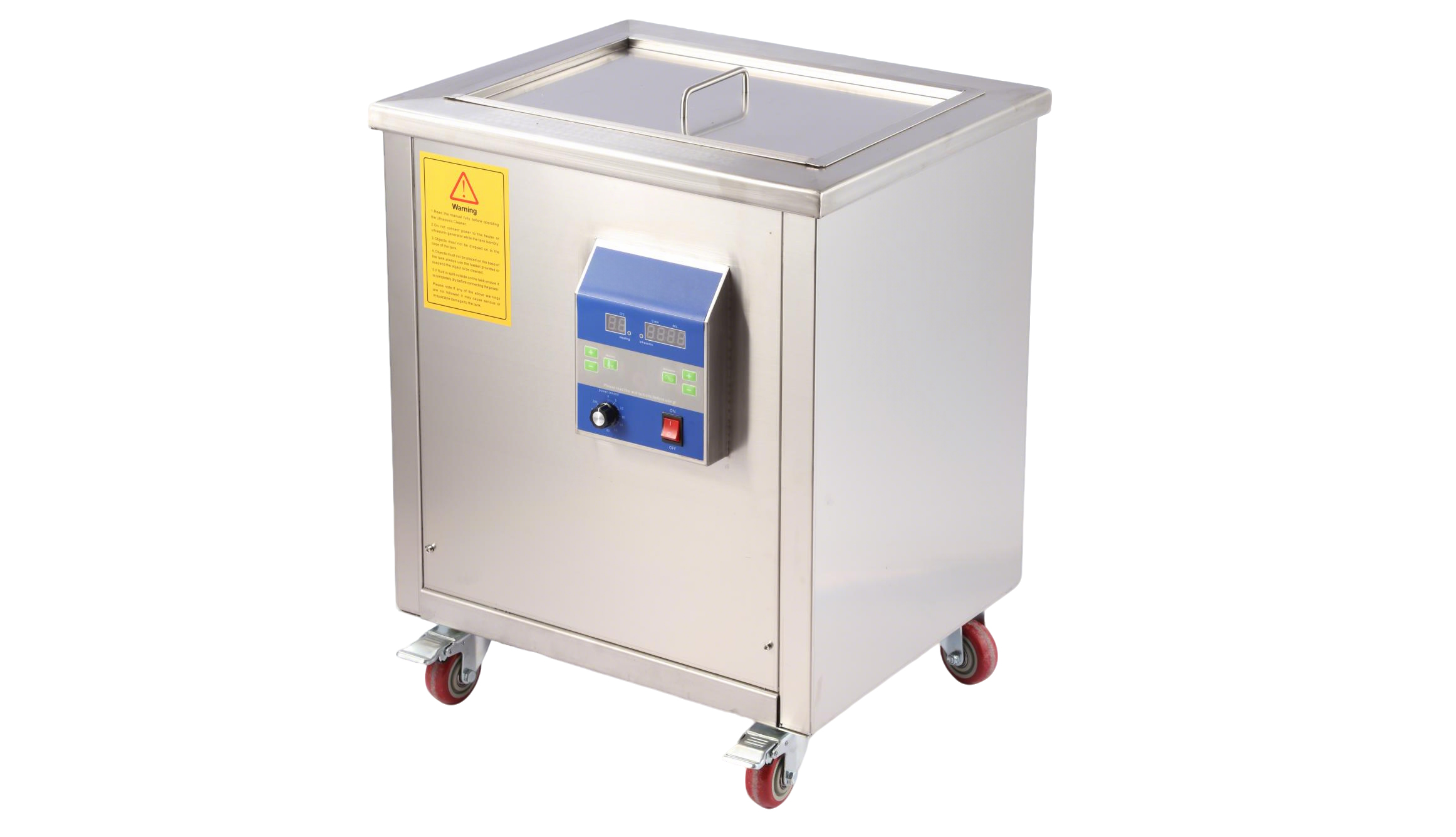

Integrated industrial ultrasonic cleaner

industrial ultrasonic cleaner

Features

  • Industrial transducer, deep cleaning blind area, with degassing and anti-oxidation, stable performance

  • Die casting stainless steel tank, no solder joints and no gaps, anti water leakage

  • New generation circuit board with stronger ultrasonic power

  • Time Setting: 1-99minutes adjustable

  • Heating: 20-120℃ temperature adjustable

  • Power cut memory function

  • Insulated handle, anti-scalding, high temperature resistance, no slippery

Application

  • Clean oil stains and rust: hardware parts, auto repair parts, molds etc

  • Circuit board/electronics: Clean the solder paste, rosin, dust, oil and other dirt on the circuit board

  • Laboratory: Clean beakers, test tubes and other utensils, emulsification, extraction, defoaming, decomposition, etc

  • Dentistry, hospital: Clean tooth sockets, pliers, tweezers etc

  • Glasses and jewelry: Clean small objects such as glasses, jewelry, watches, razors, etc.

Specifications

Model
No.		 Tank Size
(mm)		 Capacity
(L)		 Frequency
(KHz)		 Ultrasonic Power
(W)		 Heating Power
(W)		 Timing
(min：secs)		 Temp
(ºC)
34D 370*280*330 34 40 or 28 0-600 2000 0-60min/always on 20-120
53D 500*350*300 53 40 or 28 0-900 3000 0-60min/always on 20-120
60D 460*330*400 60 40 or 28 0-900 3000 0-60min/always on 20-120
88D 550*400*400 88 40 or 28 0-1200 3000 0-60min/always on 20-120
95D 600x400x400 95 40 or 28 0-1200 4000 0-60min/always on 20-120
120D 600*500*400 120 40 or 28 0-1500 4000 0-60min/always on 20-120
139D 650x500x430 139 40 or 28 0-1800 5000 0-60min/always on 20-120
175D 700*500*500 175 40 or 28 0-2400 6000 0-60min/always on 20-120
288D 800*600*600 288 40 or 28 0-2400 6000 0-60min/always on 20-120
360D 1000*600*600 360 40 or 28 0-3600 6000 0-60min/always on 20-120
430D 1200*600*600 430 40 or 28 0-5760 12000 0-60min/always on 20-120
780D 1400*800*700 780 40 or 28 0-9360 24000 0-60min/always on 20-120
